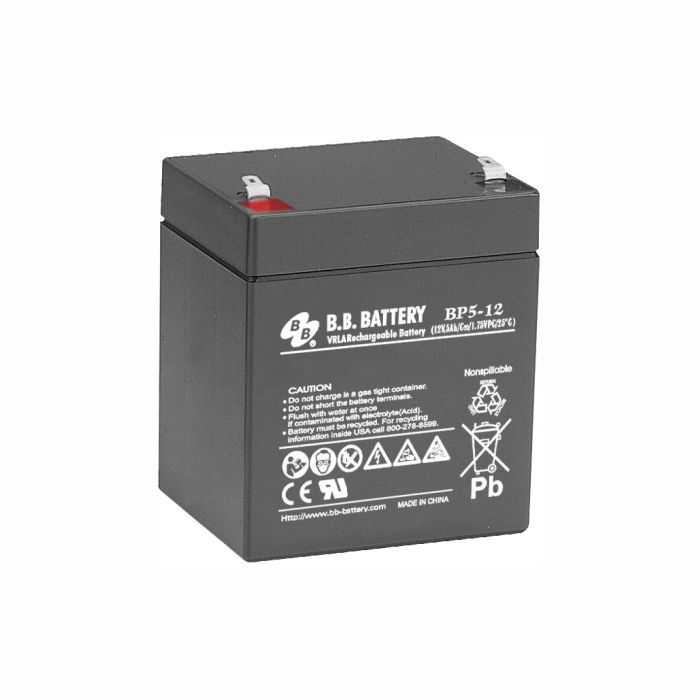

BP5-12
The B.B.Battery BP5-12 series VRLA battery features a 12V top-post terminal design, specifically engineered for long-term backup power scenarios. This maintenance-free sealed battery boasts a leak-proof structure, supports vertical/horizontal dual-mode installation, and is compatible with UPS, security systems, medical equipment, and similar applications. Constructed with impact-resistant ABS casing and flame-retardant pressure relief valves, it offers a safe service life of 8-10 years. With a 20-hour rate capacity of 5Ah, compact dimensions of just 90x70x102mm, and a lightweight 1.8kg build, it is particularly suited for space-constrained devices like emergency lighting and electronic access control. Its <3% monthly self-discharge rate effectively extends standby time.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
The B.B.Battery BP5-12 VRLA battery meets diverse power supply needs with its innovative structure. It employs a dual-layer sealing process and special paste coating on positive/negative plates, delivering stable outputs of 5Ah (20-hour rate)/4.75Ah (10-hour rate) at 12V voltage, compatible with T1/T2 terminals for flexible device connections. The impact-resistant ABS casing combined with internal flame-retardant pressure relief valves ensures safe operation in harsh environments like oil/gas and mining. Its unique gas recombination design enables true maintenance-free operation, eliminating the need for periodic fluid refills. Paired with an ultra-slim 102mm profile, it can be embedded in cabinet layers or wall-mounted.This battery is Eurobat long-life certified, ensuring continuous operation for over 8 years in critical equipment such as security alarm systems and medical monitors within an ambient temperature range of -15°C to 40°C. Its compact 3.54x2.76-inch base size is ideal for powering micro-devices like electronic doorbells and toy cars in smart homes.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP5-12
- Voltage12 V
- Nominal Capacity (Ah) 20-hour rate5
- Nominal Capacity (Ah) 10-hour rate4.75
- Nominal Capacity (Ah) 5-hour rate4.25
- Weight (kg)1.8
- Weight (lb)3.97
- Standard Terminal TypeT1
- Standard Terminal Position3
- Optional Terminal TypeT2
- Optional Terminal Position-
- Dimensions Length (mm)90
- Dimensions Length (in)3.54
- Dimensions Width (mm)70
- Dimensions Width (in)2.76
- Dimensions Height (mm)102
- Dimensions Height (in)4.02
- Dimensions Total Height (mm)106
- Dimensions Total Height (in)4.17
