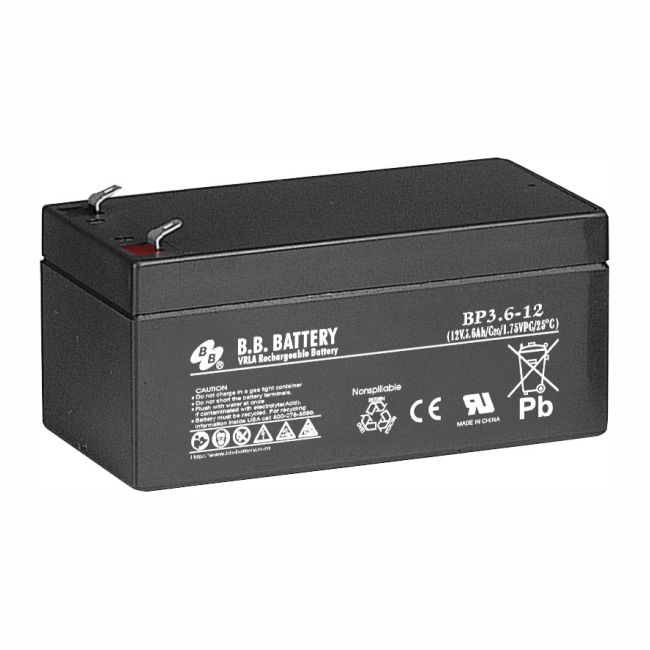

BP3.6-12
The B.B.Battery BP3.6-12 series VRLA battery features impact-resistant ABS casing and dual-sealing structure, supporting vertical/horizontal flexible installation for critical scenarios like security alarms, medical equipment, and emergency power. With 12V voltage and 3.6Ah capacity (C20 standard), its 1.32kg lightweight design and compact 134x67x60mm size allow seamless integration into space-constrained UPS systems.The exclusive pressure relief valve uses flame-retardant material, combined with paste-coated plate technology, achieving a monthly self-discharge rate below 3% over an 8-10 year lifespan, with backup power exceeding 30 minutes during outages, providing 24/7 power assurance for harsh environments like smart cities and oil/gas mines.
Buy Now- WeChat：13775032303
- Email：powercube@foxmail.com
Product details
This maintenance-free battery breaks traditional power limitations through structural innovation, with precision sealing technology on the casing and terminals completely eliminating electrolyte leakage risks. Its core advantage lies in condensing 12V/3.6Ah energy density into a palm-sized unit (5.28x2.64x2.36 inches). Standard T1 terminals enable quick integration into fire emergency lighting and access control systems, while optional T2 terminals offer customized connectivity for drone models and portable power packs. The unique six-hole electrolyte filling design ensures precise infusion during production, guaranteeing stable 3.06Ah (C5 standard) continuous output in environments ranging from -15°C to 50°C.Test data shows an 18% longer continuous operation time in medical monitors compared to standard batteries, with standby time reaching 720 hours in monitoring systems. Compliant with EUROBAT longevity standards, its lead-calcium alloy plates and deep-cycle technology enable seamless expansion to 230Ah battery arrays in off-grid rural villa power systems, making it a core energy storage unit for smart energy solutions.Product Features
- Maintenance Free ( topping up not needed )
- Non - spillable ( no free electrolyte )
- Low Self Discharge, less than 3% per month
- both Vertical & Horizontal installations
- integrated Flame Arrestor at each cell
- Carry handles for easy installation
- Flame-arrestor is installed to ensure safety
Application Scenarios
- Uninterruptible power supplies
- Security and safety systems
- Emergency lighting and video surveillance systems
- Access control and management systems
- Medical equipment
- Telecommunication facilities
- Alternative energy sources
- Electrical supply network and power industry
- Street lighting and traffic lights
- Data processing centres
Product parameters
- ModelBP3.6-12
- Voltage12 V
- Nominal Capacity (Ah) 20-hour rate3.6
- Nominal Capacity (Ah) 10-hour rate3.42
- Nominal Capacity (Ah) 5-hour rate3.06
- Weight (kg)1.32
- Weight (lb)2.91
- Standard Terminal TypeT1
- Standard Terminal Position4
- Optional Terminal TypeT2
- Optional Terminal Position-
- Dimensions Length (mm)134
- Dimensions Length (in)5.28
- Dimensions Width (mm)67
- Dimensions Width (in)2.64
- Dimensions Height (mm)60
- Dimensions Height (in)2.36
- Dimensions Total Height (mm)66
- Dimensions Total Height (in)2.6
